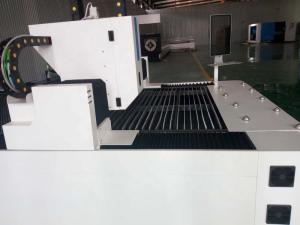

80m/min 3000mmx1500mm 380V 1KW Laser Plate Cutting Machine
Machine Features
1. Outstanding cutting cross section, high precision, good stability, satisfying the process demands of precision parts. Dynamic performance is stable, able to work for long time.
2. Capable of cutting both non-metal and metal, able to cut stainless steel, carbon steel, acrylic and wood, etc.
3. Laser cutting head with auto focusing system. Laser cutting head automatically adjust its height along the metal sheet surface, ensuring the focal length keeps the same all the time. Smooth cutting edge, no need polishing or other further handling. Flat and wavy steel sheets can be cut with this machine.
Applicable Materials
Stainless steel, carbon steel, galvanized steel, acrylic, plywood, MDF and other materials
Application Industries
Advertising industry (stainless steel and acrylic), sheet metal industry (carbon steel), packaging industry (plywood), arts and crafts, awards and trophies, paper-cutting, architectural models, lights and lamps, electronic appliances, photo frame and album, garment leather and other industries
|
project
|
parameter
|
unit
|
|
Processing size
|
(L)
|
3000
|
mm
|
|
|
(W)
|
1500
|
mm
|
|
X/Y axis positioning accuracy
|
±0.05
|
mm
|
|
X/Y axis repeatable positioning accuracy
|
±0.03
|
mm
|
|
X/Y maximum positioning speed
|
80
|
m/min
|
|
Laser generator power
|
1000
|
W
|
|
Cutting capacity: carbon steel plate
|
12
|
mm
|
|
stainless steel
|
6
|
mm
|
|
aluminum
|
4
|
mm
|
|
brass
|
3
|
mm
|
|
Maximum acceleration of X/Y
|
1.5
|
G
|
|
Motion stroke (axis)
|
X
|
3020
|
mm
|
|
|
Y
|
1520
|
mm
|
|
|
Z
|
150
|
mm
|
|
Number of phase
|
3
|
|
|
Power rating
|
380
|
V
|
|
frequency
|
50
|
Hz
|
